Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.0 × 5.0 × 1.0 in |
| Thermocouple Type | Type E -200°C to 870°C (±1.7°C), Type J (0°C to 760°C (±2.2°C), Type K -200°C to 1250°C (±2.2°C), Type T -200°C to 370°C (±1.0°C) |

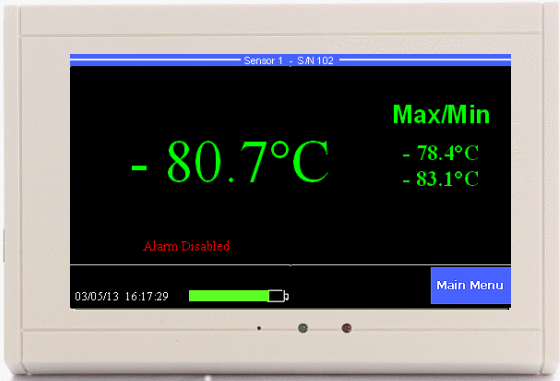

TV2 -80°C Freezer Alarm w wired sensor
The TV2 Freezer alarm for temperatures between -200° and -80°C | Automatic data logging | One wired sensor
Includes:
- Quick Check Monitor w audio/visual alarm
- Extreme Temperature Sensor w 20-foot wires. (±1.0°C)
- Wired Ethernet Connection
- Power Plug (120-240vac)
- 72-hr internal rechargeable backup battery
- PC app with SMS/Email alert
- One year warranty
Quick Look
– Text, Email & Phone Alert
– Easy touch-screen display
– Secure PC software included
– No monthly fees – 72-hour battery backup
– Automated data logging (over 80,000 data points)
– Data history chart visible on-screen
– Logs & stores several years of data
– 21 CFR 11, CDC, FDA & JCAHO compliant
Technical
Technical Specifications:
| Display | |
| Channels | Temperature only sensors- Four Channels |
| Current Conditions | 1. Temperature of each sensor (4) or temperature 2. Low battery indicator 3. Max/Min temperature of each sensor 4. Alarm enabled/disabled 5. Date and time 6. Last time data reviewed |
| Display Resolution | 0.1° on LCD, 0.0001 on PC |
| Monitoring | Continuous with active display |
| Alerts | Audible and visual indication on Display Text: uses local internet connection Email: uses local internet connection Phone (requires separate dialer) |
| Alarm Settings | High temperature Low Temperature Power out Low battery |
| Max/Min Display | Shows on active display. Resets by touch. |
| Accuracy & Range | Sensor dependent. (See sensor specs below) |
| Size | 8 3/8″ x 5″ x 1 3/8″ |
| Sample Interval | User selectable: 1/min – 1/24hrs |
| Wired Sensors | |
| Thermocouple sensor | -200°C to 350°C (T-type) |
| Technical Stuff | |
| Calibration | Optional NIST traceable |
| Characterization | One – three point calibration table for each sensor |
| Controls | Easy Touch display responds to a finger touch |
| Data Storage Technique | Non-volatile memory storage of 80,000 samples per sensor |
| Power | Via USB cable or optional power adaptor (90 to 240vac) |
| Battery Backup | ~72 hrs while in sleep mode. 1100mAh lithium battery. Not user serviceable. |
| Output to PC | USB cable (Note: if USB cable is plugged into PC, power is supplied by PC) |
| PC Software | Free site license included Optional text/Email alert software available |
| Email Software | User name and password required to download from website. |
| Indicators | LCD & LED |
| User Settings | On board password-protected menu |
| LCD Pixels | 488 horizontal x 270 vertical |
| LCD Temperature Range | Operating 0°C to 50°C, storage -20°C to 68°C |
| LCD size | 2.5″ x 4.5″ |
| LCD color display life | ~4.5 years |
| LED | Green indicates AC power present |
| Relay | Dry N/O with 2 terminal clamp <30v. Fused for .5 amp |
| Mounting | Wall mount – Velcro. |
| Display weight | 1 lb |
| Shipping weight | ~3 lbs with power adaptor, sensors & cables |
