TV2 display w pressure & temp
1

Differential Pressure: ±0.500″wg (±.002″)

2

Temperature F/C (±0.3°C)
Humidity 0% to 100% (±3.0%)

3

Visual, Audible, Email,
SMS & Phone Alerts

4

Box or Flush Mount

5

Password Protected
Menu System

6

Maximum/Minimum
updated every 4 seconds

In Stock – Immediate Shipping

Easily Monitor and Log Room Pressure

The TV2 monitor automatically displays and logs negative/positive pressure.  Additional sensors for temperature and RH can be easily added.  All environmental variables are updated every four seconds on the QuickCheck touchscreen. The TV2 monitor can also be used with 4-20mA instruments. Easy installation.  21-CFR-11 compliant.

Negative or positive pressure Logs all data points Box or panel mount
Can be used with 4-20mA instruments Can be accessed remotely Real-time and historical data
Easy setup with touchscreen No monthly fees Export, store & print logs
Audible and visual alarms Free Email/Text/or Phone alert More Information & Specs

modular clean room

Designed and Made in the USA

Room Pressure Monitoring Solutions

ProDataLoggers designs and builds products and solutions for manufacturers, OEM’s, resellers and end users. We offer a wide range of USA engineered and manufactured products for your indoor room pressure monitoring needs.

The TV2 room pressure monitor update in real time, logs all data points and alarms for unsafe conditions and power outages. It can run as a stand-alone device or interface with a Local Area network to log years of data.  An internal rechargeable backup battery insures logging and alarms continue even during power outages.

The TV2 Room Pressure Monitor provides advanced local audible and visual indicators, as well as remote notification.  All alerts triggers SMS and email alerts any time pressure, temperature or humidity conditions become unsafe.

It is a completely unique instrument that outperforms Dwyer Room pressure Monitors, Setra Room Pressure Monitors and OMEGA Room pressure Monitors. See here for yourself!

ProData Loggers guarantees all products; providing full warranty and support on all purchases. Software is included and setup is simple and quick.  It is much less expensive than you think to protect clean rooms and isolation rooms of all sorts.

The TV2 Monitoring System

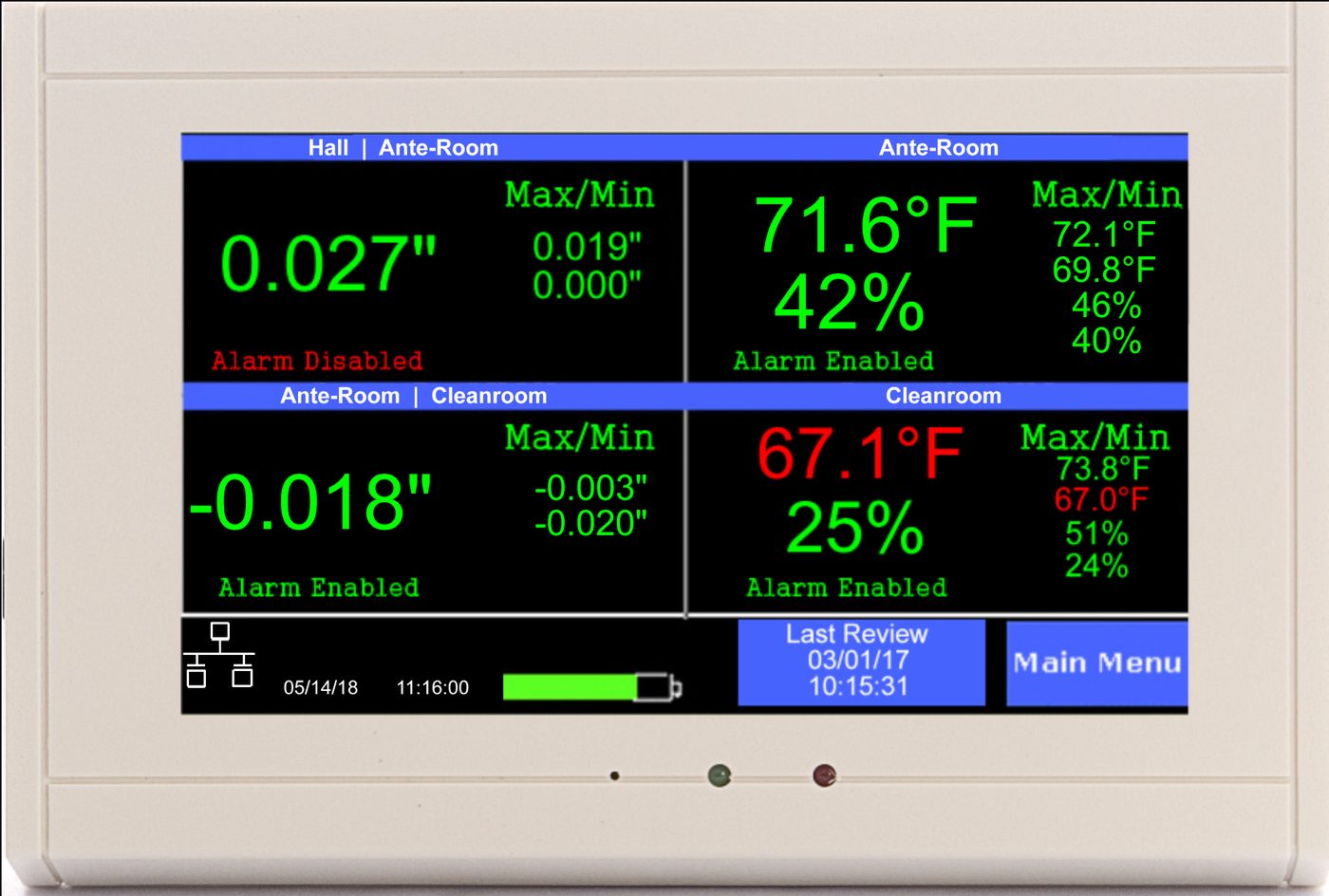

The TV2 is the perfect choice for monitoring, logging, charting and alarming any indoor environment.  Although it is a very sophisticated electronic monitoring and logging instrument it is easy to install with an intuitive menu system.  It’s QuickCheck touchscreen displays the real-time status of each variable being monitored; whether that is pressure, temperature or relative humidity so that anyone can instantly know if they are within specs or not.

Selected features of the TV2 Monitor:

  • Alarms: The TV2 monitor’s audio-visual alarms are triggered any time any variable drops or rises above safe thresholds.  In addition to the audible alarm, the unsafe condition changes from a green to red color on the display itself.  It is immediately obvious if the environmental conditions are outside the desired range.  In addition to local visual and audible alarms; SMS text messages and email alerts are sent anytime an alarm occurs. The TV2 monitor can also trigger external strobes and sirens, interface with a building alarm system and/or be wired to an auto-dialer for automated phone calls. The TV2 monitor can also be BACnet compliant.
  • Sensors:
    • Pressure Sensor (range ±.500″, accuracy ±0.002″);
    • Temperature (range -20°C to 80°C, accuracy ±0.3°C);
    • Relative Humidity (range 0% to 100%, accuracy ±3.0%).
  • Backup Battery:
    • 72-Hour Rechargeable Internal Backup Battery;
    • All logged data is stored locally and can be automatically saved to a server.
  • Power:
    • Wall power adapter 110 – 240 Vac;
    • POE option available.
  • Touchscreen:
    • Password protected easy-to-use QuickCheck display;
    • Color coded for alarm notifications.
  • Logging:
    • Each condition is automatically logged;
    • Stored and accessible locally and via PC;
    •  80,000 data points for each variable;
    • New data rolls over oldest data.

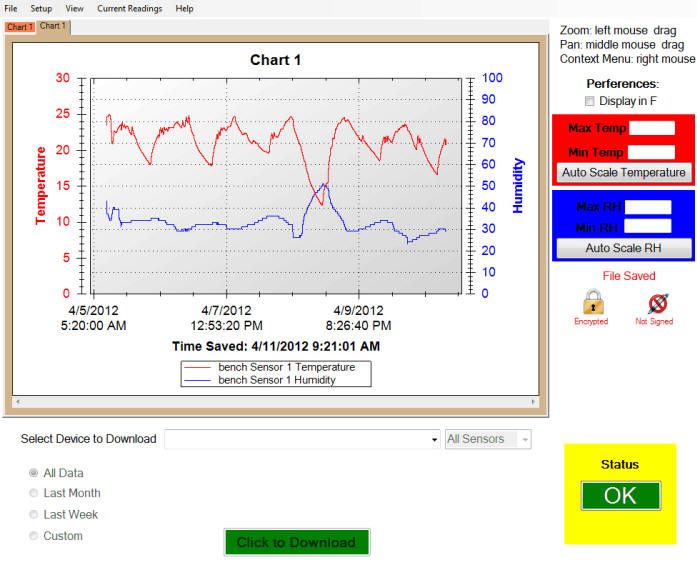

  • Charting:
    • Logged data can be viewed locally on the display;
    • Logged data charts can be viewed and printed from any PC.

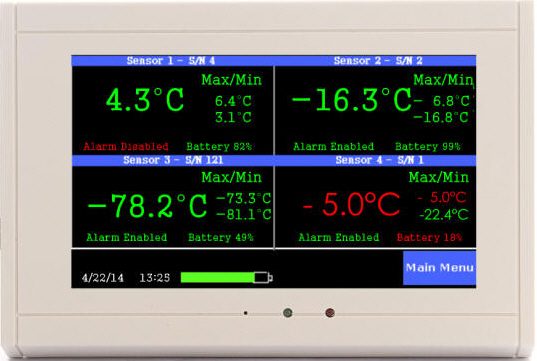

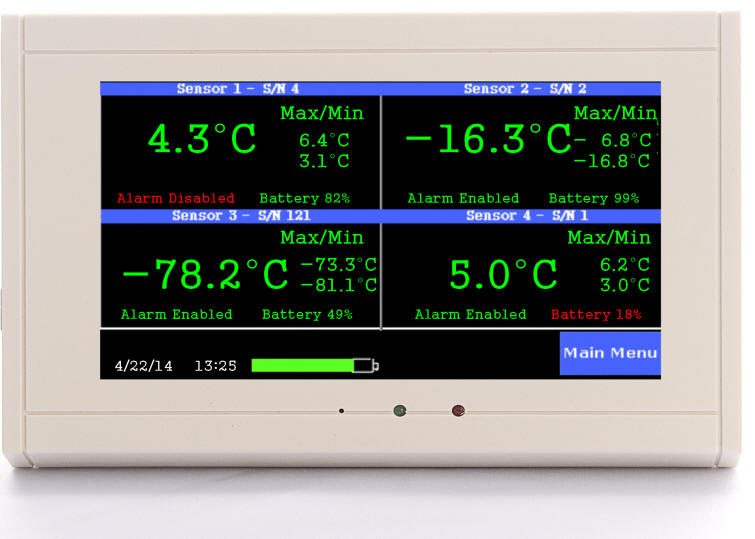

  • QuickCheck™:
    • Each measured variable displays green for safe and red for unsafe;
    • Max/Min is displayed by each variable;
    • Backup battery charge shown on screen;
    • IP address displayed on screen;
    • Alarm condition shown on screen.
  • PC Secure Interface Software App:
    • Automatically backs up data;
    • Sends text/SMS alerts;
    • Prints charts;
    • Maintains alarm logs;
    • Creates custom displays for real-time data.
